  • Golden Samurai VT 33030GS
< >
  • Golden Samurai VT 33030GS

Golden Samurai VT 33030GS

product power:30KW（千瓦）

product capacity:30KVA 【View products of the same capacity】

series:High frequency VT series 【View the same series of products】

voltage input and output:Three inputs and three outputs (380V:380V)

weight:58.5 kg（ 公斤）

size（LWH）:710*260*717 MM（毫米）17U

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation

    • VT-33030GS detailed parameter table

    Rated Capacity30KVA/30KW
    modelVT-33030GS

    VT-33030GS input parameters

    Rectifier typeIGBT rectification
    Rated voltage380Vac
    Input voltage range210VAC~475VAC 3P4W+G
    Input frequency range40Hz~70Hz（Adjustable）
    Input power factor≥0.99

    VT-33030GS output parameters

    Rated output power30KVA/30KW
    Rated output voltage380Vac
    The output voltage220VAC（1±1%）1P2W+G
    Output frequencyMains power: 46-54Hz synchronous mains; 50Hz (mains 40-46Hz or 54-60Hz); battery: 50Hz
    Output power factor1.0
    Way of workingOnline
    Output waveformSine wave
    Conversion time0ms
    Overload capacity105%＜load≤125%, switch to bypass alarm in 1 minute; 125%＜load≤150%, switch to bypass alarm in 30 seconds; load＞150%, switch to bypass alarm in 300ms
    effectivenessMains power: ≥93%; battery ≥90%
    EOC/EPOOptional

    VT-33030GS battery and running time

    battery modelValve-regulated maintenance-free lead-acid battery
    Standard machine backup time30 minutes to 8 hours optional
    Battery pack model-
    Typical battery charging time10 hours
    battery voltage240VDC

    VT-33030GS system parameters and standards

    Installation methodTower
    Overall efficiencyUp to 90%
    Electromagnetic CompatibilityICE/EN/AS 62040-1; CISPR 22 Class A
    Surge protectionICE/EN 62040-2, meet ICE/EN 61000-4-5
    Protection typeIP20
    Short circuit protectionHave

    VT-33030GS communication and management

    Interface portRS232, optional Wedpower card, AS400 card
    control panelLED status indication
    Audible alarmAlarm once every 4 seconds when mains power fails: special low battery alarm once every second

    VT-33030GS physical index

    W710.00 mm
    D260.00 mm
    H717.00 mm
    weight107(58.5) KG
    ColorBlack

    VT-33030GS environment

    working environment0 - 40 °C
    Relative humidity20%-90%
    Operating height0-1500 meters
    storage temperature-5 - 45 °C
    Storage relative humidity0 - 95%
    Storage height0-15000 meters
    Audible noise at 1 m from the surface of the device≤60.00 dB

    VT-33030GS warranty

    Standard warrantyRepair or replace within 3 years



    30 KVA AC 380V input: AC 380V output

    Input parameters
    Input voltage380V AC （Three-phase four-wire）
    Enter the live wire diameter16mm2 （Square millimeter）
    Input zero wire diameter16mm2（Square millimeter）
    Input ground wire diameter16mm2（Square millimeter）
    Input air switch100A -3P （AC open）
    Output parameters
    The output voltage380V AC （Three-phase four-wire）
    Output wire diameter10mm2 （Square millimeter）
    Output neutral wire diameter10mm2（Square millimeter）
    Output ground wire diameter10mm2（Square millimeter）
    Output MCB63A -3P （AC open）
    Battery parameters
    External battery MCB100A-2P （DC MCB）
    External battery wire diameter16mm2（Square millimeter）

    30 KVA AC 380V input: AC 220V output

    Input parameters
    Input voltage380V AC （Three-phase four-wire）
    Enter the live wire diameter16mm2 （Square millimeter）
    Input zero wire diameter16mm2（Square millimeter）
    Input ground wire diameter16mm2（Square millimeter）
    Input air switch100A -3P （AC open）
    Output parameters
    The output voltage220V AC （Single phase double wire）
    Output wire diameter25mm2（Square millimeter）
    Output neutral wire diameter25mm2（Square millimeter）
    Output ground wire diameter25mm2（Square millimeter）
    Output MCB63A -1P （AC open）
    Battery parameters
    External battery MCB100A-2P （DC MCB）
    External battery wire diameter16mm2（Square millimeter）

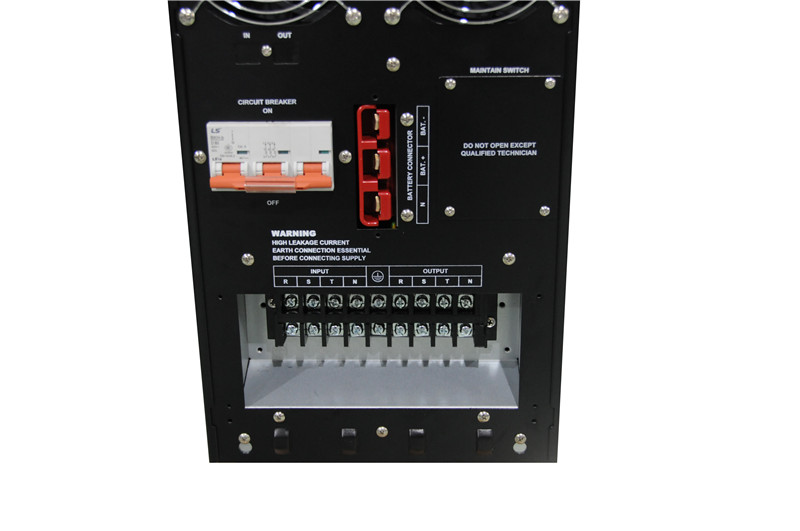

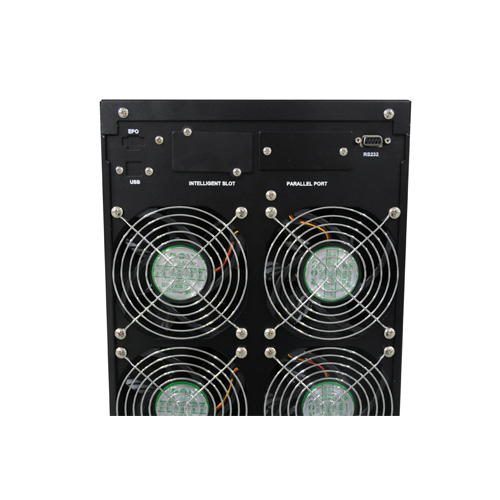

    800×531

    800×531

    800×531

    Backup model: One year warranty, one year warranty for built-in battery


    Online models: three-year warranty


    12V24AH capacity battery products: three-year warranty


    After-sales service contact information throughout the country: Contact us


    7*24 hours service telephone: 400-830-8833
