  • Golden Samurai ST6KS
< >
  • Golden Samurai ST6KS

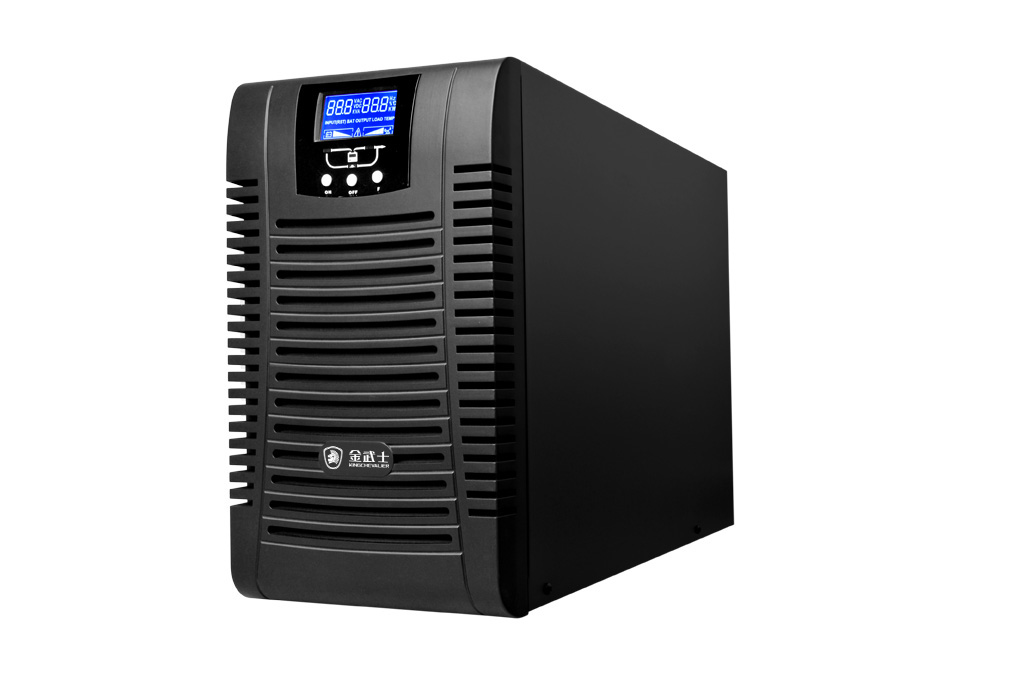

Golden Samurai ST6KS

product power:6KW

product capacity:6KVA 【View products of the same capacity】

series:High frequency ST series 【View the same series of products】

voltage input and output:Single input single output (220V:220V)

weight:11.3kg

size（LWH）:425*190*324mm

Shape classification:

  • Product Overview
  • For details
  • Installation Notes
  • Product Image
  • After-sales service
  • Documentation

    • ST 6KS  detailed parameter table

    rated power6kVA/6KW
    modelST 6KS

    ST 6KS  input parameters

    voltage range120~275Vac Single-phase two-wire + ground wire
    Operating frequency range40-70Hz（Adjustable）
    Input power factor≥0.99

    ST 6KS  output parameters

    Rated voltage and accuracy220Vac (1±2%) single-phase two-wire + ground wire
    Output frequency46-54Hz synchronous mains; 50Hz (mains between 40-46Hz and 54-60Hz); 50Hz (battery)
    Rated current27A
    Output power factor1.0
    Output harmonic≤3%
    Crest factor3:1
    Output overload105%±5%＜load≤125%±5%: switch to bypass output and alarm after 1 minute; 125%±5%＜load≤150%±5%: switch to bypass output and warning after 30 seconds; load＞ 135%±5%: switch to bypass output and alarm after 300 milliseconds
    Output voltage accuracy±1%
    Output voltage waveform distortionLinear load: ≤3%; Non-linear load: ≤7%

    ST 6KS  battery and runtime

    Rated voltage192Vdc
    Number of batteries16
    recharging current5.5A

    ST 6KS  system parameters and standards

    Mains-battery conversion time0ms
    effectiveness＞92%

    ST 6KS  communication and management

    Interface portStandard RS232, optional USB interface, support SNMP card
    control panelLCD status indication, support panel to adjust output voltage and frequency
    Emergency shutdownSupport EPO, Emergency Power Off

    ST 6KS  physical indicators

    Size (length*width*height)425*190*324mm
    Machine weight11.3kg

    ST 6KS  environment

    Working temperature0 - 40 °C
    Relative humidity20% - 95%
    noise≤55dB

    ST 6KS  warranty

    Standard warranty 3 years



    6KVA AC 220V input: AC 220V output

    Input parameters
    Input voltage220V AC （Single phase double wire）
    Enter the live wire diameter6mm2 （Square millimeter）
    Input zero wire diameter6mm2（Square millimeter）
    Input ground wire diameter6mm2（Square millimeter）
    Input air switch32A -1P （AC open）
    Output parameters
    The output voltage220V AC （Single phase double wire）
    Output wire diameter6mm2（Square millimeter）
    Output neutral wire diameter6mm2（Square millimeter）
    Output ground wire diameter6mm2（Square millimeter）
    Output MCB32A -1P （AC open）
    Battery parameters
    External battery MCB30A-2P （DC MCB）
    External battery wire diameter6mm2（Square millimeter）



    801×804
